Description
Product Overview

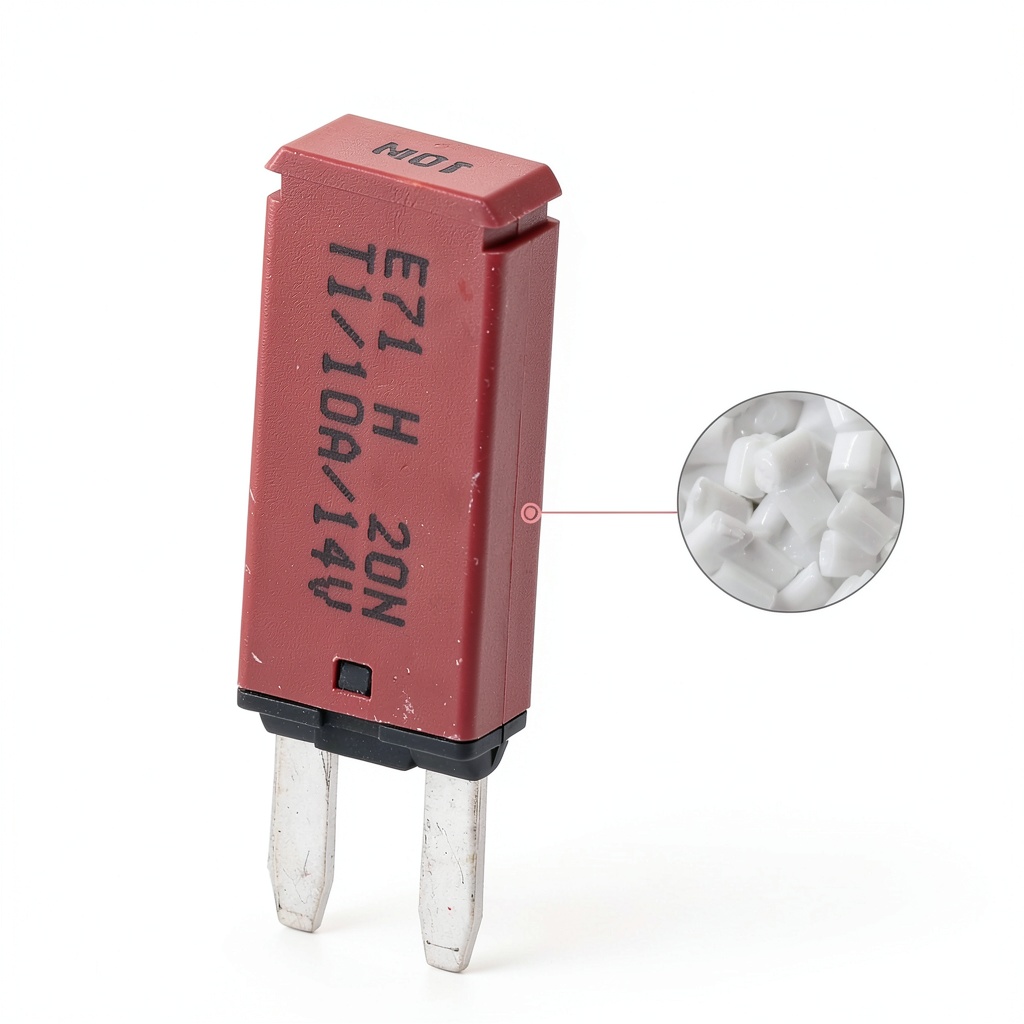

The E71 ATM Mini Fuse is engineered to meet the demanding electrical safety requirements of marine, recreational vehicle, and automotive environments. Constructed from a high‑temperature‑resistant UL‑rated thermoplastic housing, the fuse body protects against heat buildup while providing a lightweight, low‑profile form factor that easily fits into confined panels. Its tin‑plated copper alloy terminals ensure a secure, low‑resistance connection to the fuse block, minimizing voltage drop and enhancing overall system efficiency.

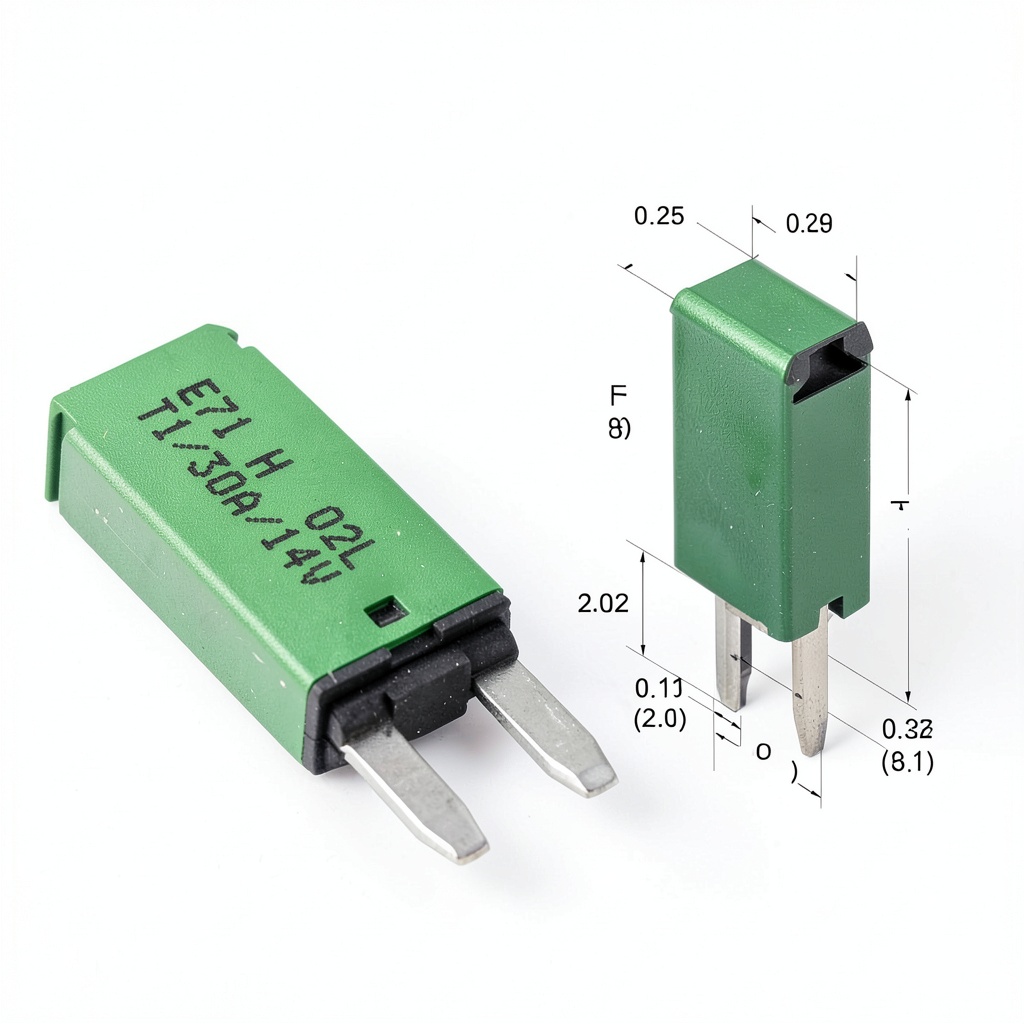

Designed for the 280‑type fuse block architecture, the E71 utilizes a 0.32″ (8.1 mm) centerline spacing, allowing seamless integration with existing wiring harnesses. The blade‑style configuration provides a clear visual cue for polarity and polarity‑correct installation, reducing the risk of wiring errors during maintenance or upgrades. Each fuse is available in a range of current ratings—5 A, 10 A, 15 A, 20 A, 25 A, and 30 A—giving installers the flexibility to match exact load requirements without the need for additional components.
Compliance with SAE J553 and SAE J1171 standards guarantees ignition protection, making the E71 suitable for use in fuel‑rich environments such as boat engine compartments and RV power distribution panels. The auto‑reset (ATM) mechanism automatically restores circuit continuity after a temporary overload, eliminating the need for manual fuse replacement and reducing service downtime. This feature is especially valuable for applications where continuous operation is critical, such as navigation lights, communication equipment, and electric wheelchair power systems.

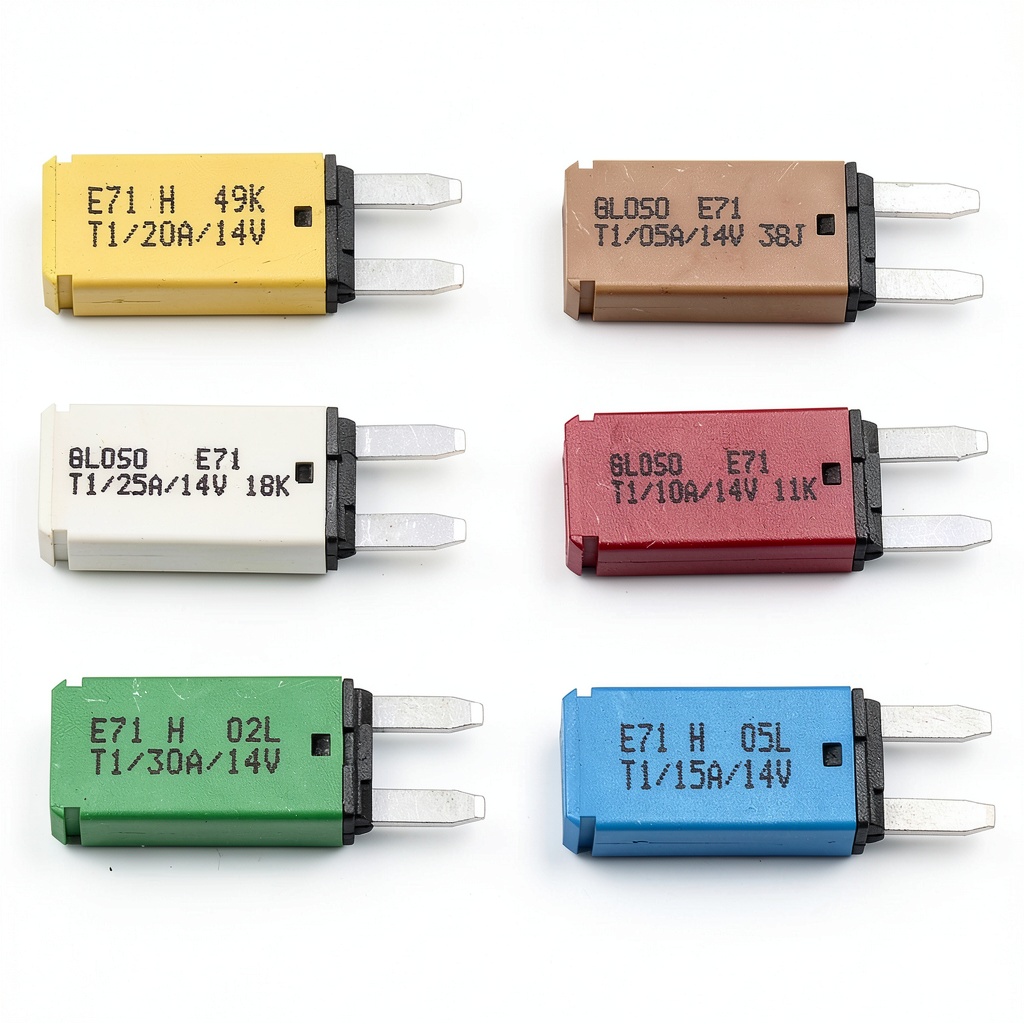

![[Product front view showing all components]](https://www.smallgoods.store/wp-content/uploads/2026/08/11992ced2a59448b8a59876a19830d97.jpg)
Usage
When installing the E71 ATM Mini Fuse, consider the typical operating conditions of your vessel or vehicle. The fuse excels in environments where vibration, temperature fluctuations, and exposure to moisture are common. For marine applications, mount the fuse within a dry compartment or use a sealed fuse block to protect against saltwater corrosion. In RVs, the fuse can be placed in the main distribution panel to safeguard lighting, HVAC, and entertainment systems.

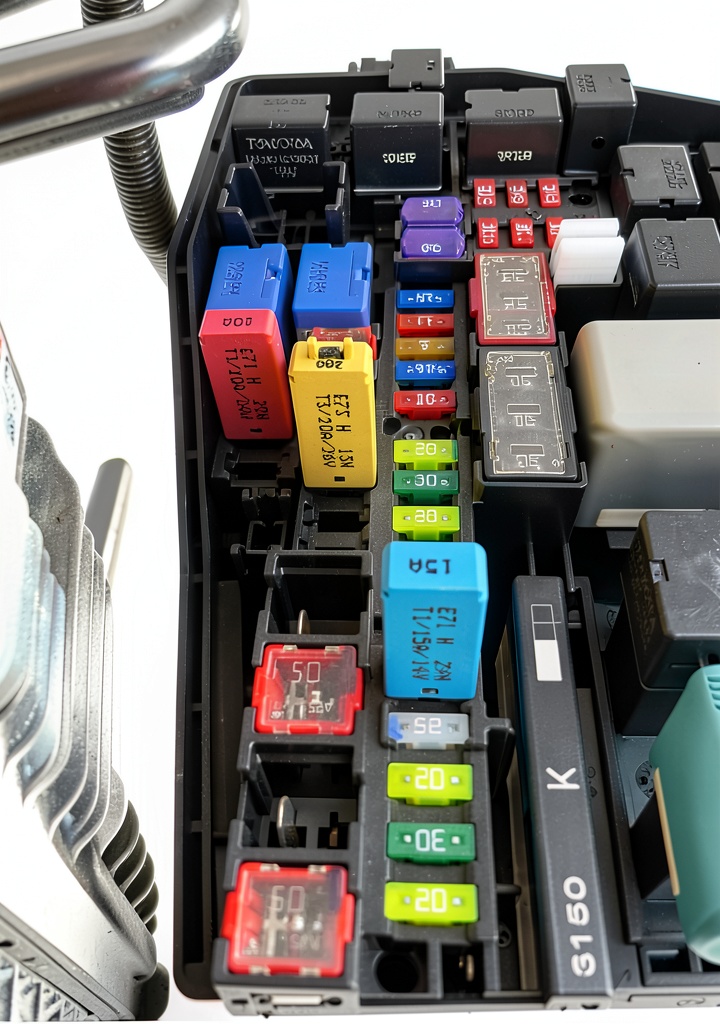

Automotive installations benefit from the fuse’s rapid reset capability, particularly in high‑current accessories such as electric power steering, infotainment units, and auxiliary lighting. The compact size allows the fuse to be positioned near the battery or alternator, providing immediate protection for critical circuits. For electric wheelchairs and other mobility devices, the E71 offers a reliable safeguard against short circuits while ensuring that the device can quickly resume operation after a transient overload.
To achieve optimal performance, follow these best‑practice steps: select the appropriate current rating based on the maximum expected load; verify that the fuse block spacing matches the 0.32″ centerline requirement; secure the terminals firmly to prevent loosening under vibration; and conduct a post‑installation continuity test to confirm proper circuit closure. Regular inspection of the fuse block for signs of corrosion or wear will further extend the service life of the E71.
Why Choose Us
Choosing the E71 ATM Mini Fuse means partnering with a manufacturer that prioritizes quality, safety, and customer satisfaction. T Tocas has a long history of producing electrical components that meet rigorous industry standards, and each E71 fuse undergoes a comprehensive testing regimen that includes thermal cycling, overload endurance, and vibration resistance. This commitment to durability translates into a product that reliably protects your equipment over years of operation.
Our fuses are backed by a clear compliance framework: they are UL‑rated for 94 V 0 °C operation, meet SAE J553 ignition‑protected criteria, and adhere to SAE J1171 standards for automotive applications. This multi‑level certification ensures that the E71 can be confidently used in a wide range of regulated environments without compromising safety.
In addition to the technical merits, we provide responsive after‑sales support. Our technical team is available to assist with installation guidance, troubleshooting, and selection of the appropriate current rating for your specific application. Should you encounter any issues, our warranty policy covers manufacturing defects, giving you peace of mind that your investment is protected.
By selecting the E71, you benefit from a product that combines advanced auto‑reset technology, robust material construction, and a proven track record of performance in demanding marine and automotive settings. This makes the E71 an ideal choice for professionals who demand reliability and efficiency from every component in their electrical system.
Key Features

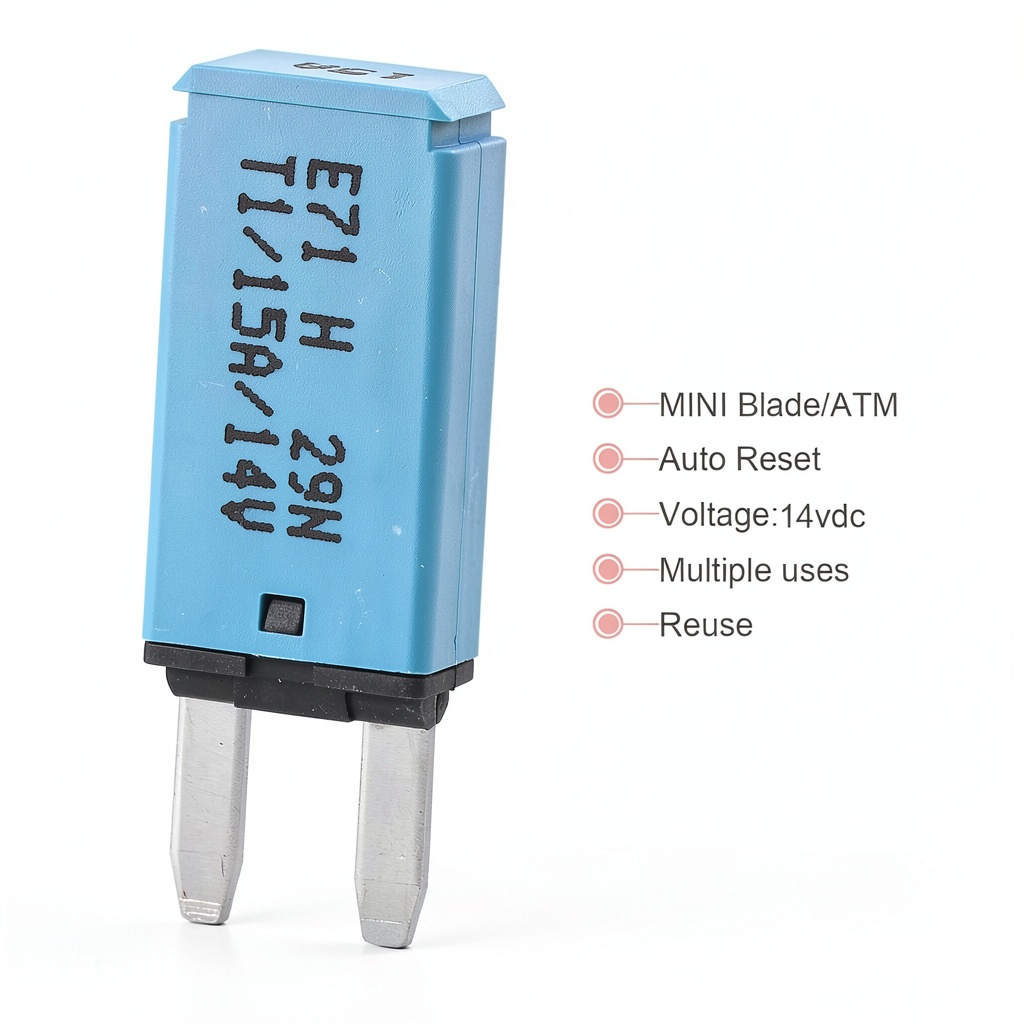

- Auto‑reset (ATM) design restores power instantly after a temporary overload, minimizing equipment downtime.
- UL‑rated thermoplastic housing provides heat resistance and durability in harsh environments.
- Blade‑style terminals ensure easy, secure installation in standard 280‑type fuse blocks.
- Available in six current ratings (5 A‑30 A) to match a wide range of load requirements.
- Comprehensive technical support and warranty coverage for added customer confidence.
FAQ
What does auto‑reset mean and how does it work?
Auto‑reset (ATM) refers to a fuse that automatically re‑establishes electrical continuity after a transient overload condition clears. When the current exceeds the rated value, the internal element temporarily opens, interrupting the circuit. Once the overload subsides and the current falls back within safe limits, the element reseats, allowing power to flow again without manual replacement.
Can the E71 be used in fuel‑rich environments?
Yes. The E71 complies with SAE J553 and SAE J1171 standards, which certify the fuse for ignition‑protected use in areas where flammable vapors or gases may be present. This makes it suitable for boat engine compartments, RV fuel tanks, and automotive engine bays where spark‑resistant components are required.
How do I choose the correct current rating for my application?
Select a rating that is equal to or slightly higher than the maximum continuous current your circuit will draw, but lower than the rating of any downstream protective device. For example, if a lighting circuit draws a maximum of 8 A, a 10 A E71 fuse provides adequate protection while allowing a safety margin. Always consult the equipment’s specifications and consider any future load increases.
Is the E71 compatible with all fuse blocks?
The E71 is designed for 280‑type fuse blocks that use a 0.32″ (8.1 mm) centerline spacing. It will not fit fuse blocks with different spacing or mounting styles. Verify the dimensions of your existing block before purchasing, or choose a compatible block from the same product family to ensure a proper fit.
What warranty does T Tocas offer for the E71 fuse?
T Tocas provides a one‑year limited warranty covering any manufacturing defects. If a fuse fails due to a defect, contact our support team with the purchase details, and we will arrange a replacement. The warranty does not cover damage caused by improper installation, misuse, or external physical impacts.
Reviews
There are no reviews yet.
